Shutoko Renewal Project
Haneda Line (Higashi Shinagawa・Samezu) Renewal

Moving Incredibly Large Components

Rebuilding of Oi Water Pipeline Bridge

We are rebuilding the old bridge to create a route that passes over the Oi Water Pipeline Bridge. As the bridge weighs 179.5 tons (equivalent to 30 elephants) in total, we have to move incredibly large components.

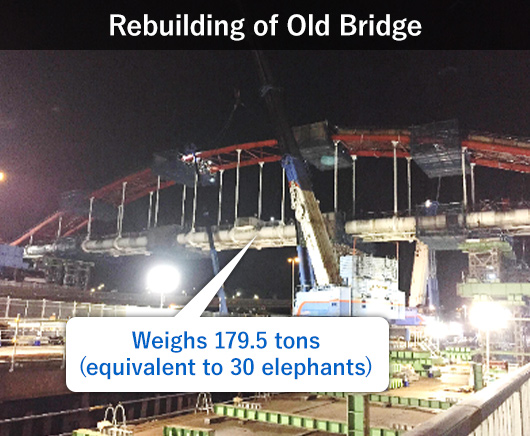

Rebuilding of Old Bridge

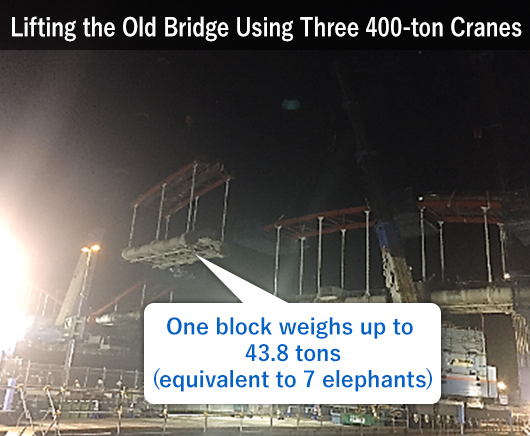

Lifting the Old Bridge Using Three 400-ton Cranes
The Old Bridge is Removed

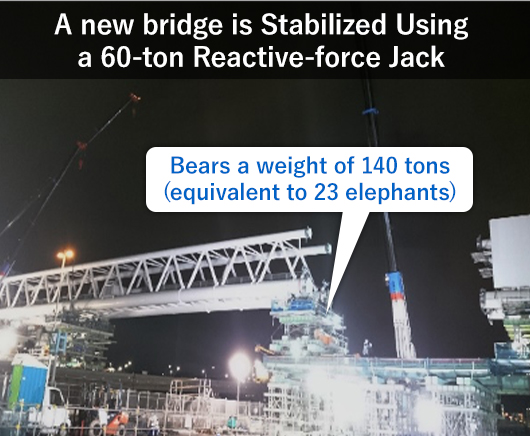

A new bridge is Stabilized Using a 60-ton Reactive-force Jack

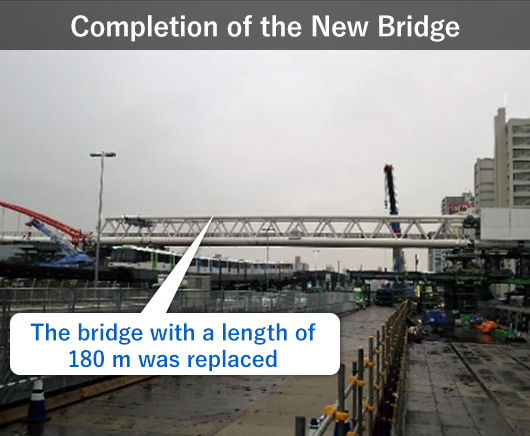

Completion of the New Bridge

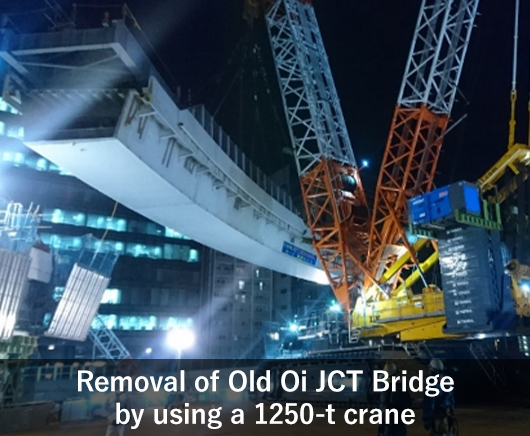

Rebuilding of Oi JCT

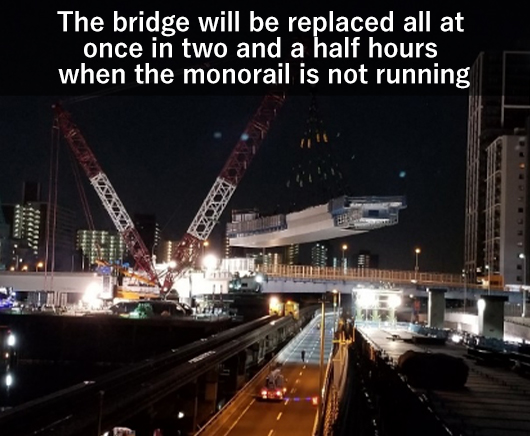

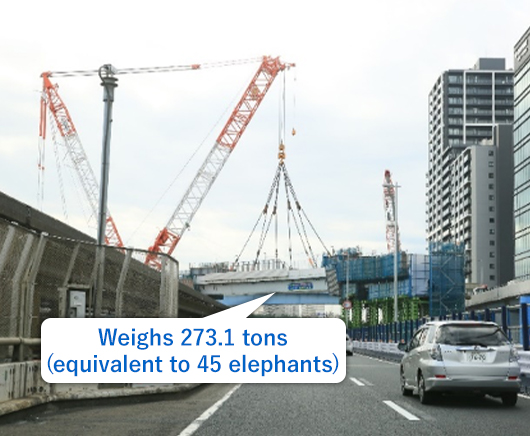

We are also rebuilding the old Oi JCT. To avoid inconveniencing the surrounding neighborhood, we rebuilt the bridge weighing 273.1 tons (equivalent to 45 elephants) overnight.
